Processless CTP Plate 100000 Run Length White Print Without Chemicals For Performance

Produtos

Máquina de fatura de placa do CTP

Máquina de impressão de placas CTCP

Computador para chapear a máquina

Placas de impressão de Processless

Placa do picosegundo

Contacte-nos

CTPplate1@cd-printing.com

+8615813828491

Contato agora

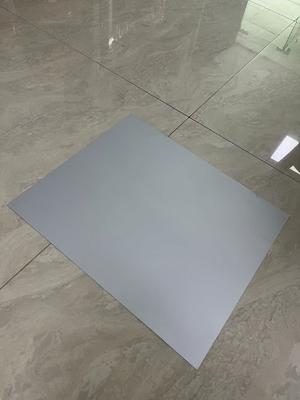

Processless CTP Plate 100000 Run Length White Print Without Chemicals For Performance

Quantidade mínima:	3000sqm
preço:	Negociável
embalagem padrão:	0.15mm is 100 sheets/box,0.30mm is 50 sheets/box
Período de entrega:	10 working day
método de pagamento:	TT, Western Union
Capacidade de abastecimento:	10000000sqm per month

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Place of Origin

Henan

Marca

PLATE-CD

Model Number

CD-RM

Código HS:

3701302400

Tempo de produção:

22-25S

Período de validade:

18 meses

Compatibilidade do PlateSetter:

Qualquer placa térmica no mercado

Comprimento de corrida:

100,000-200000 impressões

Espessura padrão da placa:

0,15 mm/0,30mm

Largura máxima da bobina:

1350 MILÍMETROS

Branco

Destacar:

processless CTP plate high run length

chemical-free printing plate white print

processless printing plate with warranty

Descrição do produto

Product Description:

Introduction to Processless CTP Plates

Processless CTP plates revolutionize offset printing with their innovative technology that eliminates the need for chemical processing post-exposure. These plates are designed for sustainability and efficiency, seamlessly integrating into digital workflows for a more eco-friendly printing process.

Advanced Technology and Features

Processless CTP plates are equipped with advanced thermal or photopolymer coatings that are sensitive to infrared (830 nm) lasers. This technology allows for high-resolution output with 1%-99% dots at 200+ lpi, ensuring consistent imaging quality. The anodized aluminum substrate of these plates provides exceptional durability, supporting print runs ranging from 50,000 to 300,000+ impressions.

Key Advantages

Eco-friendly Operation: Zero liquid waste and low VOC emissions contribute to a greener printing process.
Faster Turnaround: Direct-to-press capability or minimal post-exposure treatment speeds up production.
Reduced Maintenance: Eliminate the need for processor cleaning or chemical handling, saving time and resources.

Applications and Compatibility

Processless CTP plates are ideal for commercial printing, packaging, and newspaper applications. They are well-suited for printers seeking workflow simplicity, cost savings, and sustainability benefits. These plates are compatible with major CTP systems and represent the future of green printing technology.

Technical Parameters:

Run Length	100,000-200,000 Impressions
Plate Standard Thickness	0.15mm/0.30mm
Model	CD-RM
Maximum Coil Width	1350 MM
Validity Period	18 Months
Platesetter Compatibility	Any Thermal Platesetter In The Market
Color	White
Production Time	22-25s
Suitable For	Commercial Printing
Hs Code	3701302400

Applications:

Application Sector	Key Advantages	Typical Use Cases
General Offset Printing	Environmentally friendly, easy operation	Posters, manuals, packaging prototypes
Publishing	Consistent quality, long run capability, reduced waste	Books, magazines, manuals, catalogs
Commercial Printing	Fast turnaround, high image quality, cost savings	Brochures, catalogs, business cards, flyers

Processless CTP Plate 100000 Run Length White Print Without Chemicals For Performance 0

Packing and Shipping:

Product Name: Processless Printing Plates
Description: Our processless printing plates are designed to provide high-quality printing results without the need for chemical processing, making them environmentally friendly and cost-effective.
Shipping Information: This product will be carefully packaged to ensure safe delivery. Shipping options and costs will be calculated at checkout.

Processless CTP Plate 100000 Run Length White Print Without Chemicals For Performance 1
